Captive pin "D" shackle forged in grade 316L stainless steel
The pin is connected to the body at all times even when opened
The pin is locked into one of the indentations
No risks of loose due to vibrations
Outstanding working and breaking loads

Applications: Standard applications of shackle
Attachment applications: blocks. head …

Materials: 316 stainless steel grade
Weight (g): 188
Working Load (kg): 2100
WLL (kg): 1400
Breaking Load (kg): 7000

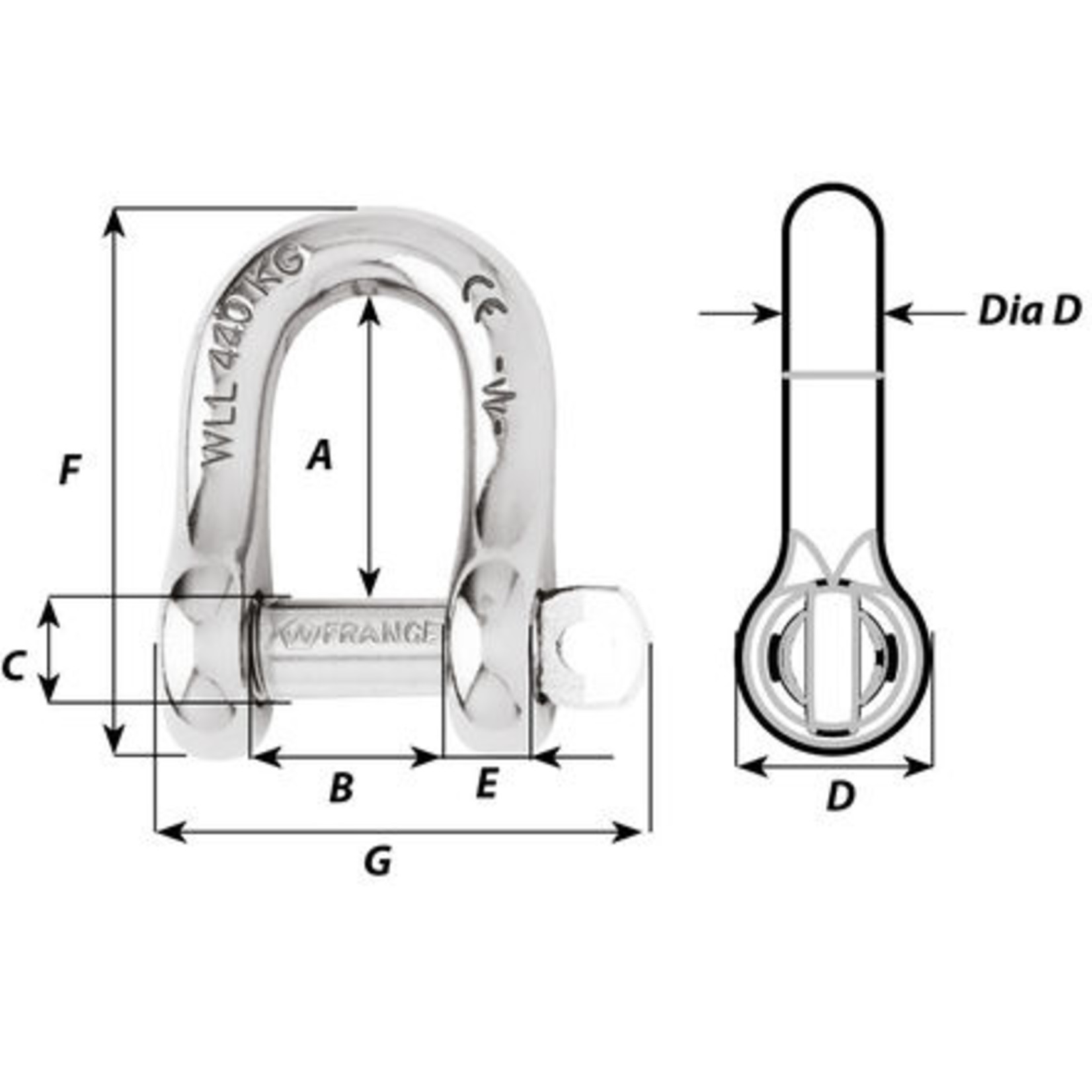

A (mm): 39
B (mm): 24
C (mm): 13
D (mm): 24
E (mm): 11
F (mm): 69
G (mm): 62
D diameter (mm): 12
